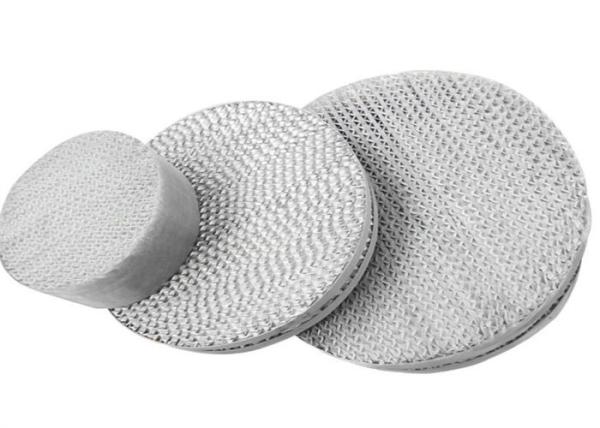

Carbon Steel 250AX Type Porosity 95% Metal Structured Packing
Metal Structured Packing Introduces:
The main structures of structured metal packing are MetaWire Gauze
Packing, MetaWire Gauze Packing, Expanded metal prick rug rated
corrugated Plate Packing, and Metal Plate-net Corrugated Packing.
Features of Metal Wire Gauze Packing:
◆ Large specific surface area, high porosity, and lightweight.
◆ The inclination of the gas channel is small and regular, and the
pressure is reduced.
◆ Good radial diffusion and sufficient gas contact.
Metal Structured Packing Characteristics:
1. The High number of theoretical plates, high flux, and low
pressure.
2. The number of theoretical plates increases with the decrease of
gas load, and there is no extreme low load.
3. Flexible operation.
4. The extension effect is not apparent.
5. It can satisfy the requirements of high precision, large scale,
and high vacuum distillation of distillation equipment. Material:
stainless steel, brass, phosphor copper, low carbon steel, etc. Use
a rigid separation system, thermal sensitive system, distillation,
and separation of high purity products.
Metal Structured Packing Application
- Sea water deaerators
- Waste gas purification, drying, and gas, water-soluble solvents
absorbers
- HCL and H2SO4 production
- Air separation
- Strippers
- Vacuum and atmospheric crude oil fractionator
- Negative pressure, normal pressure, and pressurization operation
- Liquid/liquid extraction
- Ethylene water quench tower
Metal Structured Packing Model:
| Packing Type | Specific
surface
area m²/m³ | Bulk density
Kg/m³ | Void
volume
m³/m³ | Pressure
drop
per plate
Pa/n | HETP mm | Theoretical
plate
number
m-1 | F factor
m/s0.5 | Stage
height
m |
| 250(AX) | 250 | 125 | 0.95 | 10-40 | 100 | 2.5-3 | 2.5-3.5 | 5 |
| 500(BX) | 500 | 250 | 0.90 | 40 | 200 | 4-5 | 2.0-2.4 | 3-4 |
| 700(CY) | 700 | 350 | 0.85 | 67 | 400-333 | 8-10 | 1.5-2.0 | 5 |
About Us:
Anping County Hardware Mesh Products Co., Ltd. is located in Anping
County, Hebei Province, known as the "Hometown of Chinese Wire
Mesh". The company is a dedicated manufacturer of wire mesh
demisters. The company has more than 90 sets of knitted mesh
equipment. The wire mesh demister is the main product of our
company. Most of our employees are operation, maintenance, and
installation personnel with practical experience, who can provide
customers with the required engineering consultation and
installation of tank filtration. solution.Nearly 20 years of
experience producing mist eliminator mats, knitted wire mesh, and
other packaging materials.
We have ISO9001 certification and a strict quality control system
in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are
qualified and perform flawlessly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard
and popular sizes, we can also customize specific applications
according to customer needs.
Through continuous on-the-spot inspections, personal exchanges and
cooperation with customers, and comprehensive discounts and
technical support, we have won strong customer support and praise
during the company's development.
The company's performance has maintained an annual output value
growth rate of 30-40. Our employees pursue the policy of
"enterprising, truth-seeking, rigorous and united", continue to
develop and innovate, take technology as the core, and
wholeheartedly provide cost-effective products, high-quality
engineering design, and services.
Welcome customer consultation and I sincerely look forward to
cooperating with you!
FAQ:
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB
or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. It can be customized according to
demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type
of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific
quantity and type.
