Custom Size Diameter Mist Eliminator 11000 Mm Diameter Demister pad

Demister Pad effect

The gas / vapor containing droplets passes into mesh pad demister at a predetermined velocity. It easily finds open path through the mesh but the droplets and mist impinge on the filaments of mesh where they coalesce and eventually grow to such a size to overcome surface tension of liquid and force of gravity. Then the liquid droplets so formed fall down. And the mist free gas / vapour passes through the mesh demister pad.

Only when there is air space inside the chamber, the vapor-liquid separator is effective. It can fail either when the mixed stream inlet is overwhelmed or the draining of collected liquid is slower than its growing. Considering this, the separator may be combined with some liquid level sensing accessories, such as a sight glass or float sensor. By doing this, both the supply and drain flow can be regulated to prevent the separator from being overloaded.

Demister Pad Specifications

1. Material SS316
2. Shape & Size customization
3. Mesh Thickness 80 mm
4. Demister Height 80 mm
5. Wire Diameter 0.15mm
6. Mesh Density 128 kg/m3
7. Void Fraction 0.984 /
8. Specific Area 430 m2/m3
9. Grids crimped mesh + curved ss plate mm

Applications of some main type of demister pad:

1. Mesh Density 80kg/m³,It is used for the case that velocity is big, small pressure drop is required, or collection of big particles or high efficiency is not required. High-treatment style.
2. Mesh Density 128kg/m³,Domestic standard for general purpose application.

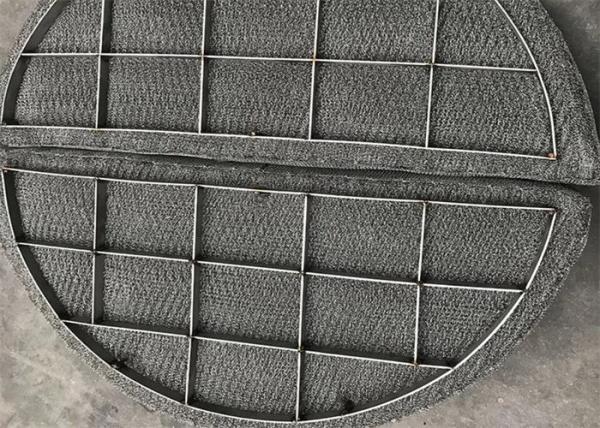

Demister Pad structure

Wire mesh demister mainly by wire mesh, wire mesh grille composed of blocks and fixed mesh blocks constitute supporting device, screen for a variety of materials structure and gas demister installation form Liquid filters, liquid filters are made of metal wire or non-metallic filaments.

Company Profile

Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment.The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!

Anping Anhesheng Hardware Mesh Products Co., Ltd., our company has been committed to the field of industrial filtration for many years, with filter elements, filter accessories, bridge guardrails, industrial dust removal and other related products, 14 years of export experience, since 2007, our company It has established business in many international regions such as Europe, the Middle East, Southeast Asia, North America, etc., and has served with many global companies, aiming to build a benchmark in the field of industrial filtration and separation. The company has more than 40 sets of production equipment, and the wire mesh demister is one of our main products. Our employees are operation, maintenance and installation personnel with many years of practical experience, who can provide customers with the required tank filtration. Engineering consulting and solutions, customized design and service are our core service tenets, and also solve your multiple concerns during use.
Our company has nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh and other metal products. We have ISO9001 certification and EU quality system certification. We promise that all products received by our customers have passed the quality inspection standards and have perfect performance. We have different specifications, in addition to standard and specific sizes, of course, customization is also our main direction, we are professional, you are more assured.
During the development of our company, we have visited customers many times and provided customer factory inspection services, professional technical accompaniment to explain the introduction, the whole process of the real plant and equipment environment, so that you can truly see your product production process, we can also provide real factory inspection, high-definition The video of the same frequency with your real-time interaction, solve your worries. The praise from thousands of customers is the best recognition for us. At the same time, because of the trust of customers, our company's production capacity maintains an annual growth rate of 30%-40%. Our company's vision: professional, precise, elite, we will wholeheartedly provide you with cost-effective products, high-quality engineering design and services.
All staff of Anping Anhesheng Hardware Mesh Products Co., Ltd. look forward to your cooperation
