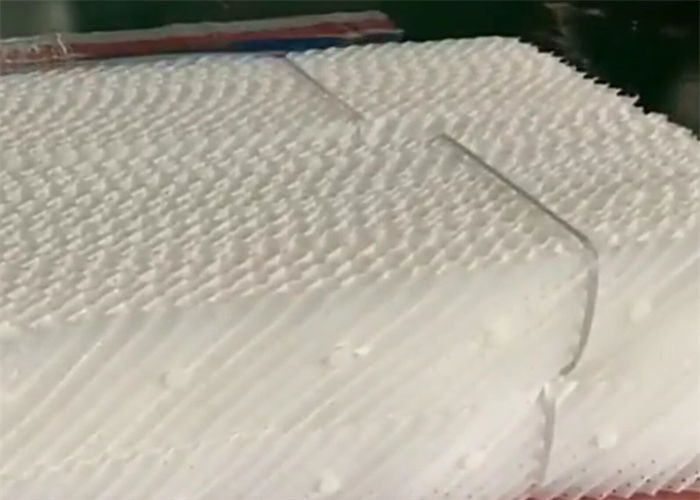

Round PFA 500X For Flue Gas Coolers Plastic Structured Packing
Plastic Structured Packing Classification
Plastic Structured Packing is widely used in the operation of
absorption and decomposition absorption units, especially for
heavy-load liquid and high operating pressure production processes,
such as the production of hydrochloric acid (HCl) and sulfuric acid
(H2SO4), the degassing of CO2 and H2S from natural gas, Drying
chlorine, ammonia production, waste gas purification,
decomposition, absorption and deaeration device
Plastic Structured Packing Application
Plastic Structured Packing Specification
polypropylene
glass filled polypropylene
PVC
Polyvinylidene fluoride
ECTFE
Glass filled ECTFE
Glass filled PFA
| Performace/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density(g/cm3)after injection molding | 0.98 | 0.96 | 1.2 | 1.7 | 1.8 | 1.9 |
| Operation TEMP.(℃) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical Corrosion Resistance | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Compression Strength(Mpa) | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 |
| Packing type | Theoretical Plate Number(piece/m) | Surface area (m²/m³) | Void Volume (m³) | Bulk Density (kg/m³) | Liquid Loading(m³/m²·h |
| 125Y | 1-2 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250Y | 2-2.5 | 250 | 0.97 | 75 | 0.2-100 |
| 350Y | 3.5-4 | 350 | 0.95 | 105 | 0.2-100 |
| 500Y | 4-4.5 | 500 | 0.93 | 150 | 0.2-100 |
| 125X | 0.8-1.9 | 125 | 0.985 | 37.5 | 0.2-100 |
| 250X | 1.5-2 | 250 | 0.97 | 75 | 0.2-100 |
| 350X | 2.3-2.8 | 350 | 0.958 | 105 | 0.2-100 |
| 500X | 2.8-3.2 | 500 | 0.93 | 150 | 0.2-100
|
About Us
Anping County Hardware Mesh Products Co., Ltd. is located in Anping
County, Hebei Province, known as the "Hometown of Chinese Wire
Mesh". The company is a dedicated manufacturer of wire mesh
demisters. The company has more than 90 sets of knitted mesh
equipment. The wire mesh demister is the main product of our
company. Most of our employees are operation, maintenance, and
installation personnel with practical experience, who can provide
customers with the required engineering consultation and
installation of tank filtration. solution.Nearly 20 years of
experience in the production of mist eliminator mats, knitted wire
mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system
in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are
qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard
and popular sizes, we can also customize specific applications
according to customer needs.
During the company's development, through continuous on-the-spot
inspections, personal exchanges and cooperation with customers, and
comprehensive discounts and technical support, we have won strong
customer support and praise.
The company's performance has maintained an annual output value
growth rate of 30-40. Our employees pursue the policy of
"enterprising, truth-seeking, rigorous and united", continue to
develop and innovate, take technology as the core, and
wholeheartedly provide you with cost-effective products,
high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to
cooperating with you!
FAQ
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB
or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to
demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type
of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific
quantity and type.
