Brand Name : | AHS |
Model Number : | PP Wire Mesh Demister |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 1500pcs per month |
Delivery Time : | 7-15days |

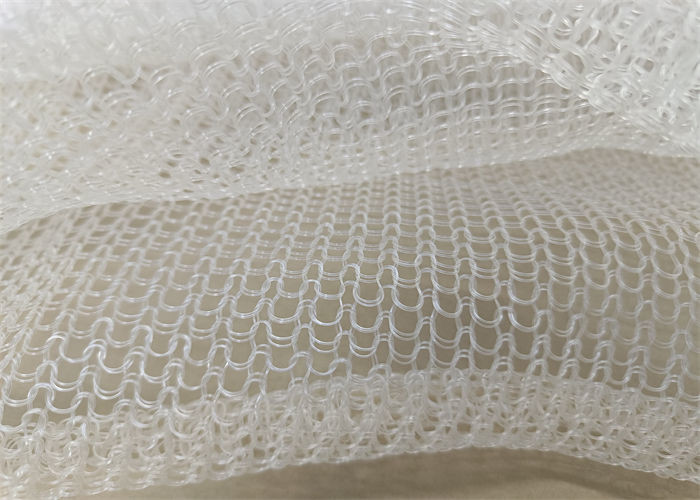

Pp Wire Mesh Demister For Vessel System Washing Tower
Normally, in the vertical vessels, the liquid drops to the bottom,
where they are withdrawn, as the force of gravity. But in low
gravity environments like a space station, the gravity is not
usable effectively. At this time, centrifugal force needs to be
utilised in a spinning centrifugal separator to drive liquid
droplets to the outer edge of the device while gas migrates to the
centre.
In either way of separation, the gas outlet can be surrounded by a
spinning mesh screen or grating. If any droplets occasionally reach
the outlet, they will strike the grating, be accelerated and thrown
away from the outlet.
The vapor goes through the mist eliminator at a designed velocity
which minimizes the re-entrainment of any liquid droplets.
The feed to a vapor-liquid separator may also be a kind of liquid
which is being partially or totally flashed into a vapor when it
enters the device.
Only when there is air space inside the chamber, the vapor-liquid
separator is effective. It can fail either when the mixed stream
inlet is overwhelmed or the draining of collected liquid is slower
than its growing. Considering this, the separator may be combined
with some liquid level sensing accessories, such as a sight glass
or float sensor. By doing this, both the supply and drain flow can
be regulated to prevent the separator from being overloaded.
Mesh density(stainless steel) | Application |
50 kg/m3 | Heavy fouling, e.g. evaporators |
80 kg/m3 | Moderate fouling, e.g. vessel boilers |
110 kg/m3 | Light fouling |
145 kg/m3 | Heavy duty, e.g. oil and gas separators |
170 kg/m3 | General purpose, not totally clean |
195 kg/m3 | Optimum efficiency & pressure drop |
240 kg/m3 | High density with high separation efficiency |
112 kg/m3 | General purpose, clean service |
145 kg/m3 | Find droplet removal in clean service |
Materials | Main Application Area |
SS304 | Water solutions, Nitric acid reduced crude petroleum fraction etc. |
SS316L | Fatty acid reduced crude containing naphthenic acids and corrosive chemicals |
Synthetic fiber | For corrosive service at moderate temperature |
PP(Polypropylene) | For corrosive service at temperature up to 70℃ |
PTFE | For corrosive service at temperature of (-190℃, 250℃) |
Monel | Caustic soda, dilute acid |
Nickel | Caustic Soda, food products |
Copper | Freon, alcohol |
Aluminium | Nitric Acid |
Working Principle Of Wire Mesh Demister
When mist in the gas rises at a constant speed, then the mist eliminator works where vapor strikes the mesh surface filament and liquid start coalescing. After some time, liquid droplet size goes up and it gets isolated from the filament.
Wire mesh demister pads are used in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping, and environment protection.
Company Profile
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system
in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are
qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard
and popular sizes, we can also customize specific applications
according to customer needs.
During the company's development, through continuous on-the-spot
inspections, personal exchanges and cooperation with customers, and
comprehensive discounts and technical support, we have won strong
customer support and praise.
The company's performance has maintained an annual output value
growth rate of 30-40. Our employees pursue the policy of
"enterprising, truth-seeking, rigorous and united", continue to
develop and innovate, take technology as the core, and
wholeheartedly provide you with cost-effective products,
high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to
cooperating with you!
![]() |
