304 Stainless Steel Knitted Wire Mesh For Gas Liquid Filter Tiny
Wire Mesh Demister
Mesh Pad Demister Introduction
The performance of the mist eliminator was evaluated by the droplet
separation efficiency, the vapor pressure drop of the wet mist
eliminator, and the overflow and loading speed. These factors are
measured as a function of vapor velocity (0.98–7.5 m/s), packing
density (80.317–208.16 kg/m3), pad thickness (100–200 cm), wire
diameter (0.2–0.32 mm), and diameter Captured droplets (1-5 mm).
All measurements are within the range of actual wire mesh fog.
Mesh Pad Demister Working Principle
The demister pads work by coalescing smaller liquid droplets by
obstructing their path. Obstruction of the path causes increased
collisions among the liquid droplets. Most of these droplets stick
together and form bigger droplets that are too heavy to rise with
the gas stream. Thus the more significant liquid drops drop down in
the pool of liquid below. The gas stream is not affected by the
obstruction in the path and escapes through the top vapor outlet.
The obstruction in the path of liquid droplets can be achieved by a
variety of geometries. Demister pad may be a mesh-type coalescer, vane pack, or other structure intended to aggregate the mist into
droplets that are heavy enough to separate from the vapor stream.
Selected wire mesh form of demister
| Specifications of standard type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| SSTDPAHS-01 | Flat wire | 0.1 × 0.4 | +10/-0 | 150 | 475 | 0.981 |
| SSTDPAHS-02 | Round wire | 0.23 | 320 |
| Note: every 100 mm thick mat has 25 layers of wire mesh. |
| Specifications of efficient type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| ETDP-01 | Flat wire | 0.1 × 0.3 | +10/-0 | 182 | 626 | 0.977 |
| ETDP-02 | Round wire | 0.19 | 484 |
| Note: every 100 mm thick mat has 32 layers of wire mesh. |
| Specifications of high-penetration type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| HP-01 | Flat wire | 0.1 × 0.4 | +10/-0 | 98 | 313 | 0.9875 |
| HP-02 | Round wire | 0.23 | 4217 |
| Note: every 100 mm thick mat has 20 layers of wire mesh. |
| Specifications of shock absorber type demister pad |
| Item | Specification | Filament specifications
(mm) |
| AHS-01 | 33-30 type | 0.08 |
| AHS-02 | 38-40 type | 0.08 |
| AHS-03 | 20-40 type | 0.22 |
| AHS-04 | 30-40 type | 0.1/0.12 |
| AHS-05 | 30-50 type | 0.16 |
| AHS-06 | 40-60 type | 0.12 |
| AHS-07 | 30-80 type | 0.22 |
| AHS-08 | 50-120 type | 0.22 |
| AHS-09 | 40-120 type | 0.22 |
| Type | Standard wire specification |
| SP | 0.1 mm + 0.03 mm × 0.4 mm |
| DP | 0.1 mm + 0.02 mm × 0.3 mm |
| HR | 0.23 mm + 0.03 mm × 0.4 mm. |
| HP | 0.1 mm + 0.03 mm × 0.4 mm |
Wire Mesh Demister Characteristic
Structure simple, weight light.
The high factor of porosity, and low head loss.
Great contact surface area, high removing foam ratio.
The convenience of installing, operating, and repairing.
Company Profile

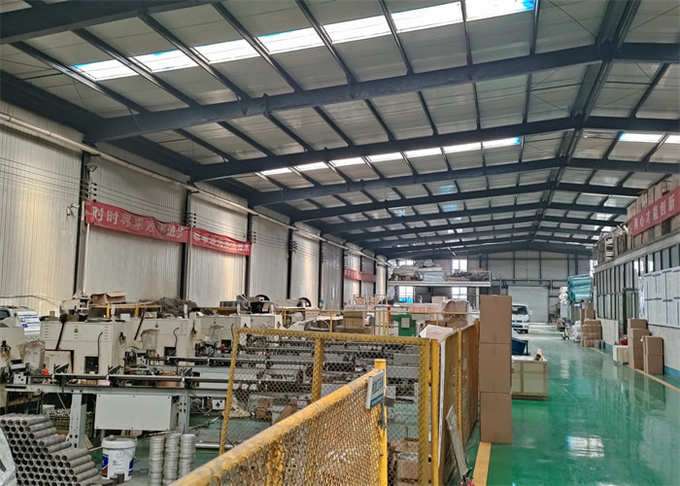

Anping County Hardware Mesh Products Co., Ltd. is located in Anping
County, Hebei Province, known as the "Hometown of Chinese Wire
Mesh". The company is a dedicated manufacturer of wire mesh
demisters. The company has more than 90 sets of knitted mesh
equipment. The wire mesh demister is the main product of our
company. Most of our employees are operation, maintenance, and
installation personnel with practical experience, who can provide
customers with the required engineering consultation and
installation of tank filtration. solution.Nearly 20 years of
experience in the production of mist eliminator mats, knitted wire
mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system
in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are
qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard
and popular sizes, we can also customize specific applications
according to customer needs.
During the company's development, through continuous on-the-spot
inspections, personal exchanges and cooperation with customers, and
comprehensive discounts and technical support, we have won strong
customer support and praise.
The company's performance has maintained an annual output value
growth rate of 30-40. Our employees pursue the policy of
"enterprising, truth-seeking, rigorous and united", continue to
develop and innovate, take technology as the core, and
wholeheartedly provide you with cost-effective products,
high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to
cooperating with you!
