    ISO9001 369 Stainless Steel Mesh Pad Demister 100mm-200mm Thickness

    Ask Lasest Price
    Brand Name : AHS
    Model Number : H004
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1500pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    ISO9001 369 Stainless Steel Mesh Pad Demister 100mm-200mm Thickness

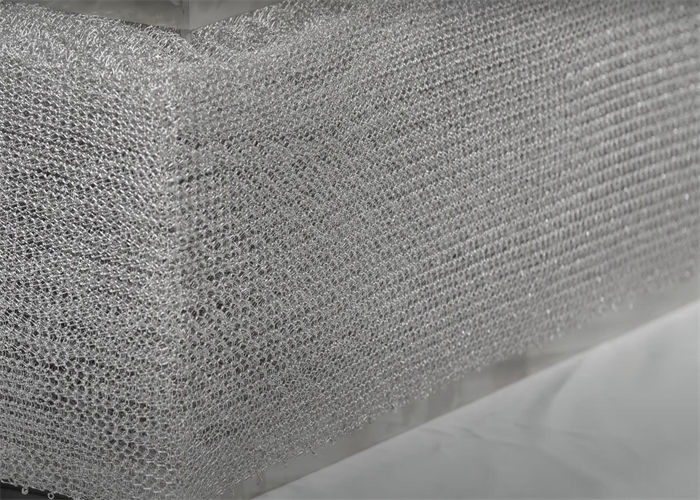

    369 Stainless Steel Pad 100mm - 200mm Thickness Wire Mesh Demister


    Wire Mesh Demister Information

    The shape of the wire mesh demister is mainly circular and rectangular. AHS can customize a special-shaped wire mesh demister eliminator upon request. This is a high-efficiency separation unit used in various process industries to remove droplets from gas or vapor streams. The materials are stainless steel wire, nickel wire, copper wire, galvanized wire, iron wire, Monel wire, and so on.


    Selected wire mesh form of demister


    StyleDensity
    kg/m3
    Free Volume
    %
    Surface Area
    m2/m3
    MetaYorkBecoilKnit meshVico-TexTopKochAcs
    H8099158Hi-Thruput9319544536160B5117CA
    L12098.5210422
    N14498.2280Nu-Standard4319030280A9114CA
    SN12898.4460326415706
    SL19397.5375Xtra-Dense4218909033380C12114BA
    SM30096.2575
    SH39095750
    T22097.2905
    R43294.51780Multi-Strand333800
    W22097.2428Wound
    GS16096.75000371

    Specifications of shock absorber type demister pad
    ItemSpecificationFilament specifications
    (mm)
    AHS-0133-30 type0.08
    AHS-0238-40 type0.08
    AHS-0320-40 type0.22
    AHS-0430-40 type0.1/0.12
    AHS-0530-50 type0.16
    AHS-0640-60 type0.12
    AHS-0730-80 type0.22
    AHS-0850-120 type0.22
    AHS-0940-120 type0.22
    TypeStandard wire specification
    SP0.1 mm + 0.03 mm × 0.4 mm
    DP0.1 mm + 0.02 mm × 0.3 mm
    HR0.23 mm + 0.03 mm × 0.4 mm.
    HP0.1 mm + 0.03 mm × 0.4 mm

    Working Principle Of Wire Mesh Demister


    When mist in the gas rises at a constant speed, then the mist eliminator works where vapor strikes the mesh surface filament and liquid start coalescing. After some time, liquid droplet size goes up and it gets isolated from the filament.


    Wire Mesh Demister Characteristic

    • Structure simple, weight light.

    • The high factor of porosity, and low head loss.

    • Great contact surface area, high removing foam ratio.

    • The convenience of installing, operating, and repairing.

    Wire Mesh Demister Application


    Wire mesh demister pads are used in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping, and environment protection.


    ISO9001 369 Stainless Steel Mesh Pad Demister 100mm-200mm Thickness


    Company Profile


    Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.


    We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.


    We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.


    The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.


    During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
    The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.


    Welcome customer consultation and I sincerely look forward to cooperating with you!
