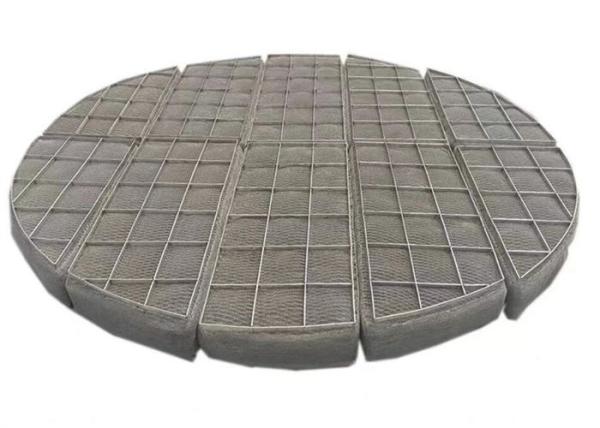

Customized SS304 Distillation Column Special York431 Mesh Pad Demister

Mesh Pad Demister Introduction

Stainless steel wire mesh demister is also called a mist eliminator, wire mesh demister, gas-liquid separator, etc.

It is mainly used to separate droplets with a diameter greater than 3 μm to 5 μm. When the gas with mist rises at a certain speed and passes through the filter screen in the middle of the grid, due to the inertia of the mist rising, the mist collides with the filament and adheres to the surface of the filament.

The further diffusion of the mist on the surface of the filament and the gravity settlement of the mist itself make the mist form larger droplets and flow along the filament to its intersection. Due to the wettability of the filament, the surface tension of the liquid, and the capillary action of the filament, the droplet becomes larger and larger until its own gravity exceeds the resultant force of the buoyancy of the rising gas and the surface tension of the liquid, and then it is separated and falls. As long as the operating gas speed and other conditions are selected properly after the gas passes through the wire mesh demister, its demister efficiency can reach more than 99%, and the purpose of completely removing mist can be achieved.

Mesh Pad Demister Working Principle

The demister pads work by coalescing smaller liquid droplets by obstructing their path. Obstruction of the path causes increased collisions among the liquid droplets. Most of these droplets stick together and form bigger droplets that are too heavy to rise with the gas stream. Thus the more significant liquid drops drop down in the pool of liquid below. The gas stream is not affected by the obstruction in the path and escapes through the top vapor outlet. A variety of geometries can achieve obstruction in the path of liquid droplets. Demister pad may be a mesh-type coalescer, vane pack, or other structure intended to aggregate the mist into droplets that are heavy enough to separate from the vapor stream.

Mesh Pad Demister Usage

Demister Pads – Demisters – Oil Mist Separators are widely used in the following fields: Absorption Towers / Separation
Drums/distillation towers/extraction towers/drying towers/reactors/flash towers/reboilers/evaporators/vacuum towers/prilling towers/scrubbers gas turbines/steam drums

Standard Mesh Styles

Standard Type Demister Pad
Common Diameter: 0.20 – 0.45mm
Weight Density: 168 Kgs/M3
Specific Surface Area: 529.6M2/M3
Porosity: 0.9788ε
High Efficient Demister Pad
Common Diameter: 0.12 – 0.45mm
Weight Density: 128 Kgs/M3
Specific Surface Area: 403.5 M2/M3
Porosity: 0.9839ε

Mesh Pad Demister advantages

High-Efficiency High Turndown Ratio Light Weight Easy to Install No Operating Cost
No Moving Parts/Maintenance Low-Pressure Drop

Company Profile

Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
We have won strong customer support and praise during the company's development through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!

Anping Anhesheng Hardware Mesh Products Co., Ltd., our company has been committed to the field of industrial filtration for many years, with filter elements, filter accessories, bridge guardrails, industrial dust removal and other related products, 14 years of export experience, since 2007, our company It has established business in many international regions such as Europe, the Middle East, Southeast Asia, North America, etc., and has served with many global companies, aiming to build a benchmark in the field of industrial filtration and separation. The company has more than 40 sets of production equipment, and the wire mesh demister is one of our main products. Our employees are operation, maintenance and installation personnel with many years of practical experience, who can provide customers with the required tank filtration. Engineering consulting and solutions, customized design and service are our core service tenets, and also solve your multiple concerns during use.
Our company has nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh and other metal products. We have ISO9001 certification and EU quality system certification. We promise that all products received by our customers have passed the quality inspection standards and have perfect performance. We have different specifications, in addition to standard and specific sizes, of course, customization is also our main direction, we are professional, you are more assured.
During the development of our company, we have visited customers many times and provided customer factory inspection services, professional technical accompaniment to explain the introduction, the whole process of the real plant and equipment environment, so that you can truly see your product production process, we can also provide real factory inspection, high-definition The video of the same frequency with your real-time interaction, solve your worries. The praise from thousands of customers is the best recognition for us. At the same time, because of the trust of customers, our company's production capacity maintains an annual growth rate of 30%-40%. Our company's vision: professional, precise, elite, we will wholeheartedly provide you with cost-effective products, high-quality engineering design and services.
All staff of Anping Anhesheng Hardware Mesh Products Co., Ltd. look forward to your cooperation
